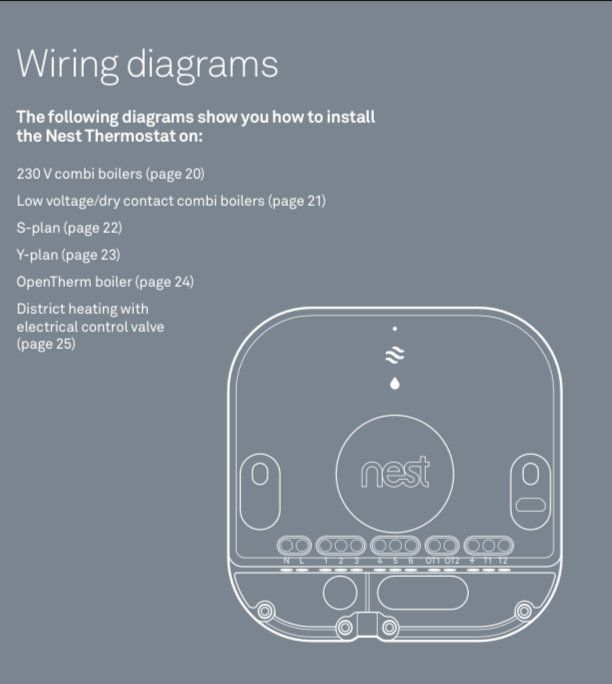

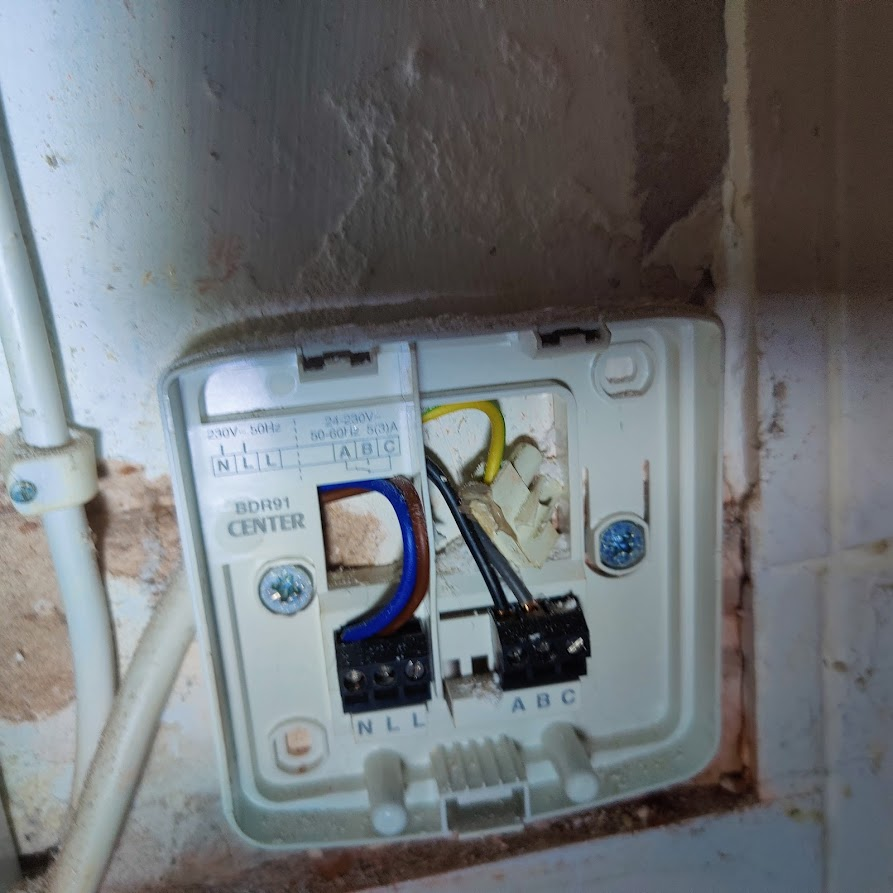

I got my google nest e today looked a doddle to install. but every manual or wiring diagram on the net including Google’s own manual is different from the actual device. I wil attach pics of google wiring diagram and the nest e device and the original thermostat and google have confirmed it’s compatible.
