Signal being blocked

[Abu Baniaz]

If you are selecting a region that does not apply to you, of course it will fail. Can you please post the screenshot showing area/region you have picked in ABM for freeview. Which mast is the aerial pointing to? You can put your postcode in the freeview checker if you want. If your mast is not shown in Freeview providers in ABM, it will have to be added. Please upload a lamedb file and details of the mast you are pointing to. Or you can use the frequency finer part of ABM, which will create a provider file.

Alternatively, install terrestrial scan plugin and it will create a Terrestrial bouquet. Forget ABM.



[PrimeScreen]

Derry but only coming up limavady in list of regions

Limavady should be the right one for Derry mate try that region and use the Limavady transmitter frequencies for the manual scan



[PrimeScreen]

A stronger aerial might sort it as well if the signal is weak indoors



[mike142]

Derry but only coming up limavady in list of regions

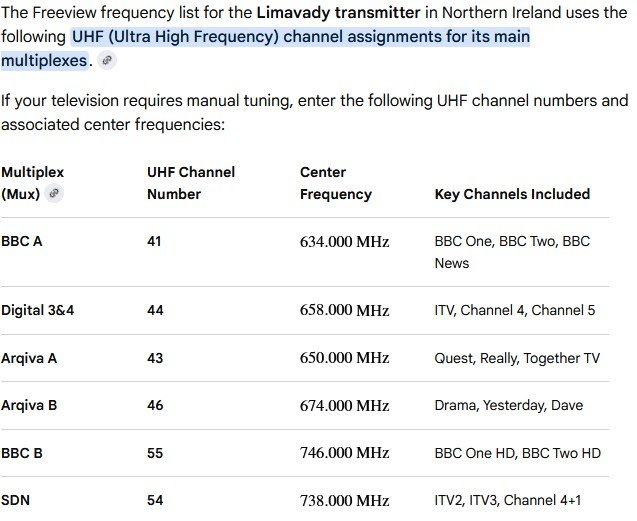

These are the Limavady frequencies for a manual search, I use the Brougher transmitter so I don't know if these are correct or not.



[Abu Baniaz]

The list of masts/regions in ABM are here: AutoBouquetsMaker/AutoBouquetsMaker/providers/terrestrial_uk_freeview.xml at master · oe-alliance/AutoBouquetsMaker
Unless your region/mast is listed/correct it will never work. We can help you resolve ABM issue, IF you want. The manual scan solutions/advice people are posting will work, but will not resolve ABM issues. You have already posted a manual scan worked.



[pabloescaban]

Check here to see which transmitter is nearest to you

mb21 - Transmitter Information - Limavady



[Abu Baniaz]

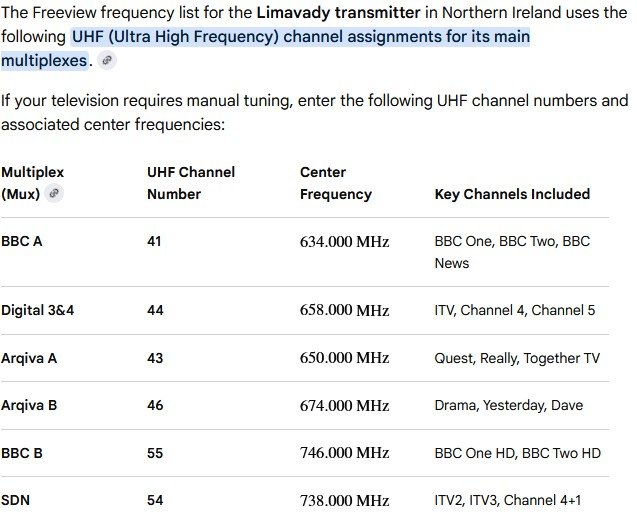

These are the Limavady frequencies for a manual search, I use the Brougher transmitter so I don't know if these are correct or not.

View attachment 135786

ABM tries to tune to 706 MHz for Limavady, which is not on your list, so it needs to be updated to 634 if correct. There is also no HD frequency listed, so ABM will not find HD Terrestrial services. If somebody in the area can run Frequency finder in ABM and upload the output it ,we can change it and ABM will work for everyone in the area.



[mrafc]

i'm not a satelite person but would a bigger dish make a difference? to get a better signal?



[cactikid]

i'm not a satelite person but would a bigger dish make a difference? to get a better signal?

BLOCKED signal as trees or buildings wont matter as it cannot focus to where to go.



[Brucey89]

Thanks, will get a look when I'm next in with him and post settings up.



[Abu Baniaz]

If you are going to persist with ABM, I have edited the ABM provider file using the details online. Update the provider file in ABM and it should work. If you get a version error, you may need to flash a newer image. I highly recommend that you add the provider name to bouquets in ABM. This avoids confusion between different bouquets.

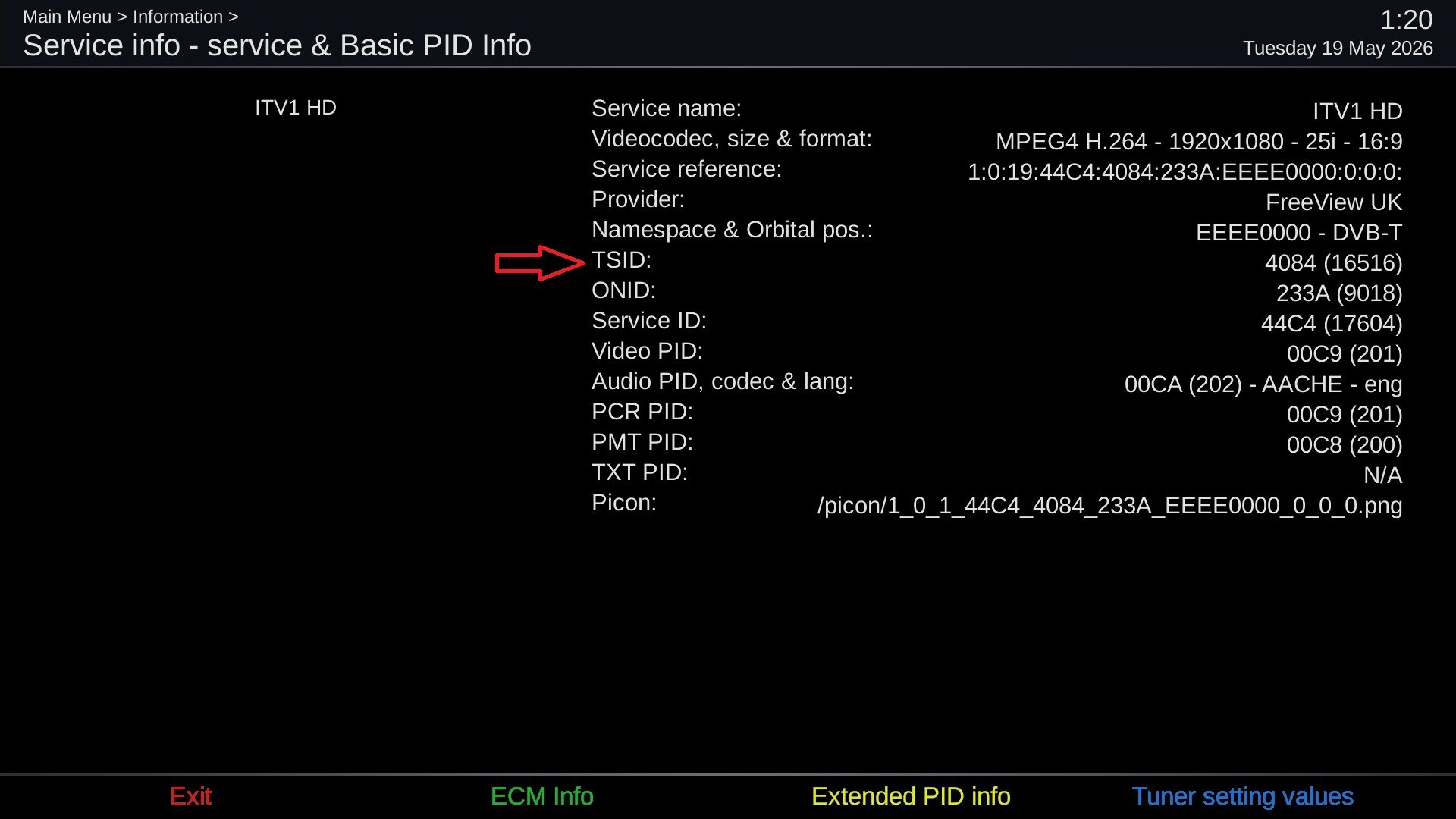

If the information I have found is correct, your HD services are on 682 Mhz. If someone in the region can select a HD Terrestrial (aerial) channel and then select Menu > Information > Service
Upload a screenshot or clear picture. as below. We can then add the HD multiple for the area.
