dsayers2014
VIP Member
File updated to allow automatic download of the latest sat_282_sky_uk_CustomMix.xml
Please use this openatv image here http://www.techkings.org/zgemma-sta...2014-openatv-image-h-2h-one-set-bouquets.html as I can no longer support this image thanks
Vix4.1.010 27/06/2016 for the zgemma H2.H with Kiddacs Vskin and set with one set of bouquets rather than 2
26/08/2016
small update to the web server
Please note this is only for the for the new model h.2h with both vm and sky connection and subs
if you want to use cable only try Bioheads image http://www.techkings.org/zgemma-star-h-2h/94055-biohead-image-openatv-5-3-vskin-cable-only.html
vix4.1.010 for the zgemma H2.H with Kiddacs Vskin hd v1.010 includes slyk1HD v4.003 with epg tabs just set as your skin
included in this backup
mgcamd1.38 and cccam2.30
iptv player customised to remove a lot of the foreign sources
OpenVix Custom EPG with channel numbers on epg this plugin also allows you to change the functions of the colored buttons on epg
crossepg for sat and epg refresh for cable
catchflush plugin
Dream-Explorer
Movie Organisor plugin - organise your series recordings into folders thanks to grog68
the latest sat_282_sky_uk_CustomMix.xml is downloaded every time the box scans abm thanks to wooshman for the great help
if you've downloaded the beta test customupdater plugin please uninstall it portal red to remove plugins, extentions and select the customupdater
this is not needed abm does it for you
This backup has been set to generate one set of bouquets by replacing the non available
sky hd channels with vm hd channels so the channel numbers will be the same as sky 106 sky 1hd and 107 is sky living hd
crossepg for sky and epg refresh for cable
new way to download it
ftp imagebackups file to media/hdd/
menu
setup
vix
image manager
blue to restore
or if using the usual usb flash with the zgemma on a formatted usb stick turn of box using back power button insert usb in back and switch on using back button then box should change from usb to flash.
download here
:download:
Set with mgcamd1.38. & cccam2.3 and with all mg_cfg and newcamd.list and CCcam.cfg files needed in place! Just edit your details in and reboot! DO NOT SEND YOUR FILES IN. EDIT WHATS ALREADY THERE
Do not online update Vix on any box from Airsat (ibox/zgemma). I have updates turned off anyway.
OK. Basically u need a usb or hard drive that can be wiped and devoted to the box.
That will store program guide and recordings and timeshift to rewind TV etc.
4gb is minimum I'd recommend. But more is better.
Once image is flashed and u edit ur newcamd.list file in usr/keys or CCcam.cfg in /etc with filezilla. a guide is at the bottom of the page
Get the permanent USB/hdd onto a PC and quick format it.
ZGEMMA DISHCABLE'S SETTUP
plug one dish cable into tuner A(sat). and the second cable into B(vm).
You will need to plug kenable F Type Screw Connector Socket to RF Coax Aerial Male Adapter to plug into tuner b
then

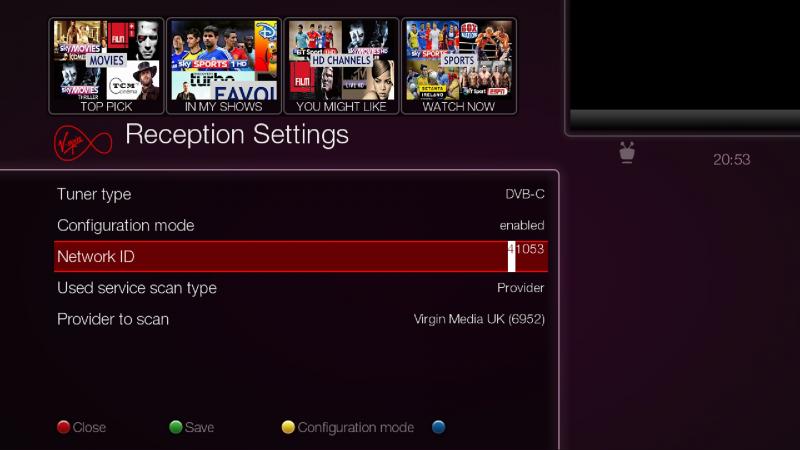

menu, setup, service searching,Tuner configuration,
select Tuner B: and input your network id
check here for a list of network ids cable netids
you will need both sat and cable leads connected aswell as a sub for both
added info: you will also need a network connection for scanning channels and to unscramble the channels
either use a lan cable, home plugs or wifi adapter. lan cable or home plugs is recommended for a more stable connection
please do not post in this thread regarding wifi adapters as i dont use them so i cannot offer support
USB/ HARD DRIVE SETUP
Box off.
Usb in rear.
Box on.
Menu
Setup
System
Storage devices
Initialisation
Select ur drive
Red to initialise
Exit all
I don’t think the newer models need swapfile but if you want to enable it
Menu
Setup
Vix
Swapfile manager
Blue to create 256mb. Wait
Yellow to autostart
Green to start
Red to close.
Hold power button on remote for 3 secs and select Restart (not GUI)
(If u are using a large enough usb/HDD u may want to go to
Menu
Setup
System
Timeshift settings
Autostart ts after 30secs or whatever.
As it is u must press pause to start timeshift)
If you find that the screen is to large/small/off to side:
Menu
Setup
System
User interface
Position setup
U can change about here. Including transparency of windows.
TO SETUP ABM
Menu
Setup
Service searching
Autobouquets maker
Providers. Wait
Please only change the following settings leave the rest as they are
Sky ROI should be yes ROI:HD no bouquets should be generated
Sky UK :area. Change from north west yorkshire HD to your area HD not sd or custom by pressing right or left.
You may want to go down and change sky uk channel swap to no if you don’t have bbc and itv hd versions in your area
Then virgin(uk): area change 41064 York(ff Leeds) to your net id
no need to generate other bouquets apart from generate main bouquet should be yes
Green to save.
Start scan. Wait.
Exit all
Hold power Restart
TO SETUP EPG
I have set-up crossepg for sat and epgrefresh for cable
For crossepg (sat)
Menu
setup
Cross EPG

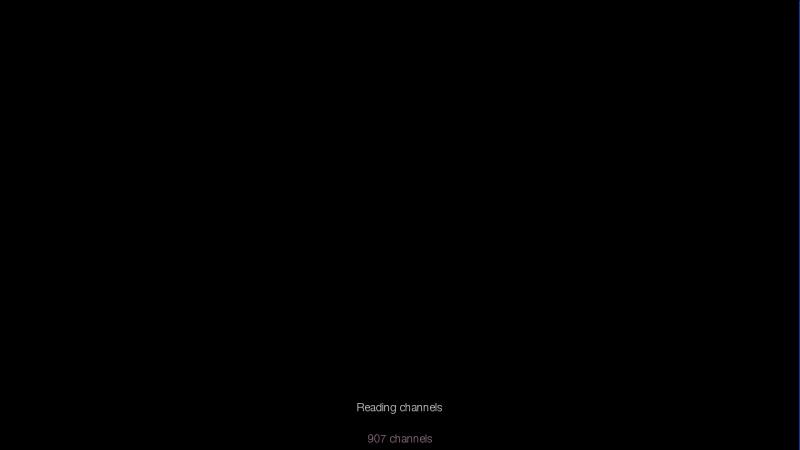

Download now. Takes 5-10 mins. Will seem like its stuck on Loading Data. Wait.
Happens automatically at 6 am anyway.
Exit all
Hold power again and restart.

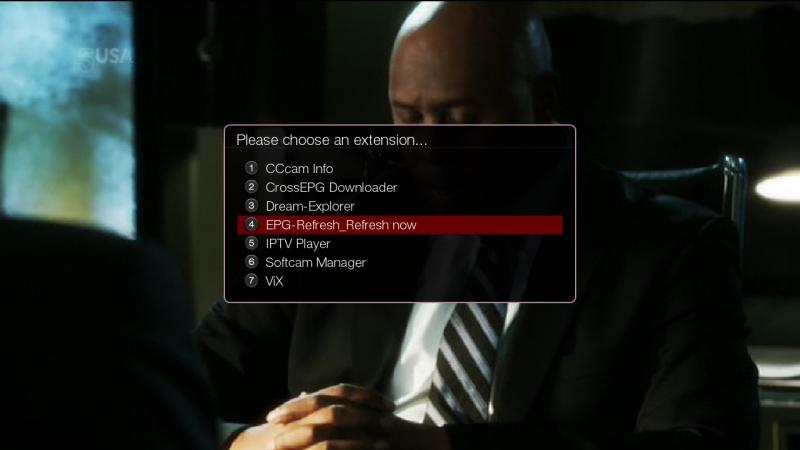

For epgrefresh (cable) go to all channels bouquet select vm preview channel and press blue button then epg refresh now this is setup to automatically run at 5.30 am.
Kiddacs Vskin hd v1.010
auto bouqets setup
auto epg update set
cross epg setup to hdd
Includes mgcamd, cccam, openwebif, picture player, Media scanner, Dream-Explorer, iptv Player, epg refresh and cachflush
all frequencies up to date abm set to replace non working sat hd channels with cable
To change the resolution
this image is set to 720p for people with lower resolution tvs if you want to change it menu, setup, system, A/V settings highlight mode and
press right to change to 1080p then green ok
To install picons if you want
google and find a picon folder.
ftp the picon folder to /usr/share/enigma2
or media/hdd if your using a lot of plugins
graphical infobar epg settings.
change service title mode to picon and service name.
then graphical epg settings.
change service title mode to picon and service name.
Then channel selection settings.
show picons In service list. Change to yes.
this also includes slyk1hd with epg tabs to to set it as your skin press menu, setup, system, user interface, skin setup and select slyk1 hd
check here for the latest version of slyk1 hd and how to customise (when upgrading slyk1hd when enabling epg tabs just edit the extras.xml dont replace the epgselection.py)
Slyk 1 HD (sly skin) Version 3 - Now Available
or here for the latest version of kiddacs vskin
New Skin - Vskin HD
Idiots Guide for adding your line with Filezilla
On your Box Menu > Info> Network > Get your box IP address

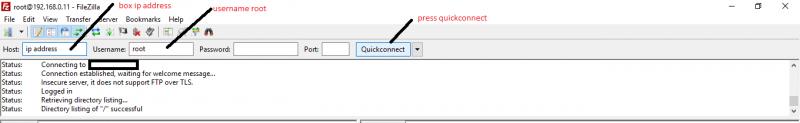

Open up Filezilla Host (top left ) Type in IP address Username root Leave others blank Press Quickconnect
Box should then connect to computer Left side computer, Right hand box
For N lines
On right hand side locate usr Double click it Then Keys Double click It You should now see 2 files Mg and Newcamd list On Newcamd list Left click/right click Then click View/Edit
( It may ask you what program you wish to view the file choose Notepad) You will see 2 samples of what your line should look like
either edit your line details or Delete up to CWS = (space either side of = )
Copy and past your line Less the N: in its place
Disconnect from Filezilla By Clicking the X just under bookmarks top of page

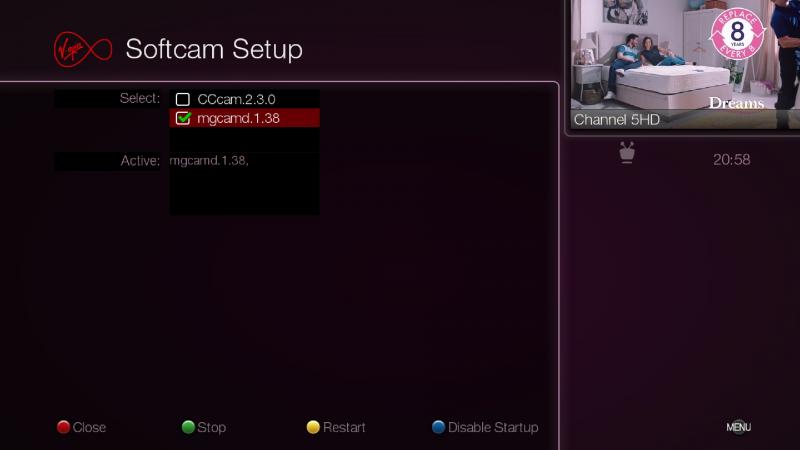

Press blue button on remote control >.Softcam Manager Select Mg 1.38 and retsart cam (yellow button)
Restart box (not with GUI)
For C lines
Instead of usr/keys on box Your line goes Complete with the C in the CCcam.cfg file in the Ect folder
on box and select CCcam and start in Softcam manager (green button) and choose restart cam (yellow button) and restart box
Hope it helps
creating a backup
once done you may want to create a backup so you can reflash if needed at a later date
Creating a backup for usb flash
vix
1. Go to menu, setup, vix, image manger and press green for new backup this process will take a while and seems to stop at 18% but don’t worry its just creating the backup
2. FTP to media/hdd and click on imagebackups and transfer the folder that says dsayers2014-openvixrelease-numbers.zip to desktop
3. on desktop unzip the openatv folder and you should see a zgemma folder drag that to desktop open it then open the h3 folder inside there you should see 3 folders karnel, imageversion and roofs.bin leave it open
4. now go to my original backup and you should see force in the h3 folder place that in your backup and you should be good to go and place the zgemma folder in a usb to flash another box or yours if you need to reflash.
If you want to reflash your box and still can go through the menus go to menu, setup,vix, imagemanager and press blue to restore
screen shots below enjoy
