UK Sat HD is back - 2023.
- Thread starter ThePirates
- Start date
deano2010
Member
After reading this thread I’m kinda intrigued now leaning towards getting the GTMEDIA V8 uhd but it would mean i would have to climb & change the lnb as it would be wideband on the mini dish as we originally had SkyQ a while back then it’s finding a sub if anyone could give me some pointers or Pm Cheers
Warhead1999
Newbie
Yep this. Very odd shape box lol
moshibeth
TK Veteran
Nope
dargan
Member
Thank you
You may have a hybrid LNB in that case you'll need to swap over the Cables on the LNB. Take a pic of the LNB and we can identify it.
If it is a wideband LNB it will need to be changed for either a hybrid LNB if you still use the Skyq box or a universal LNB if not. Either way your up the ladder.
deano2010
Member

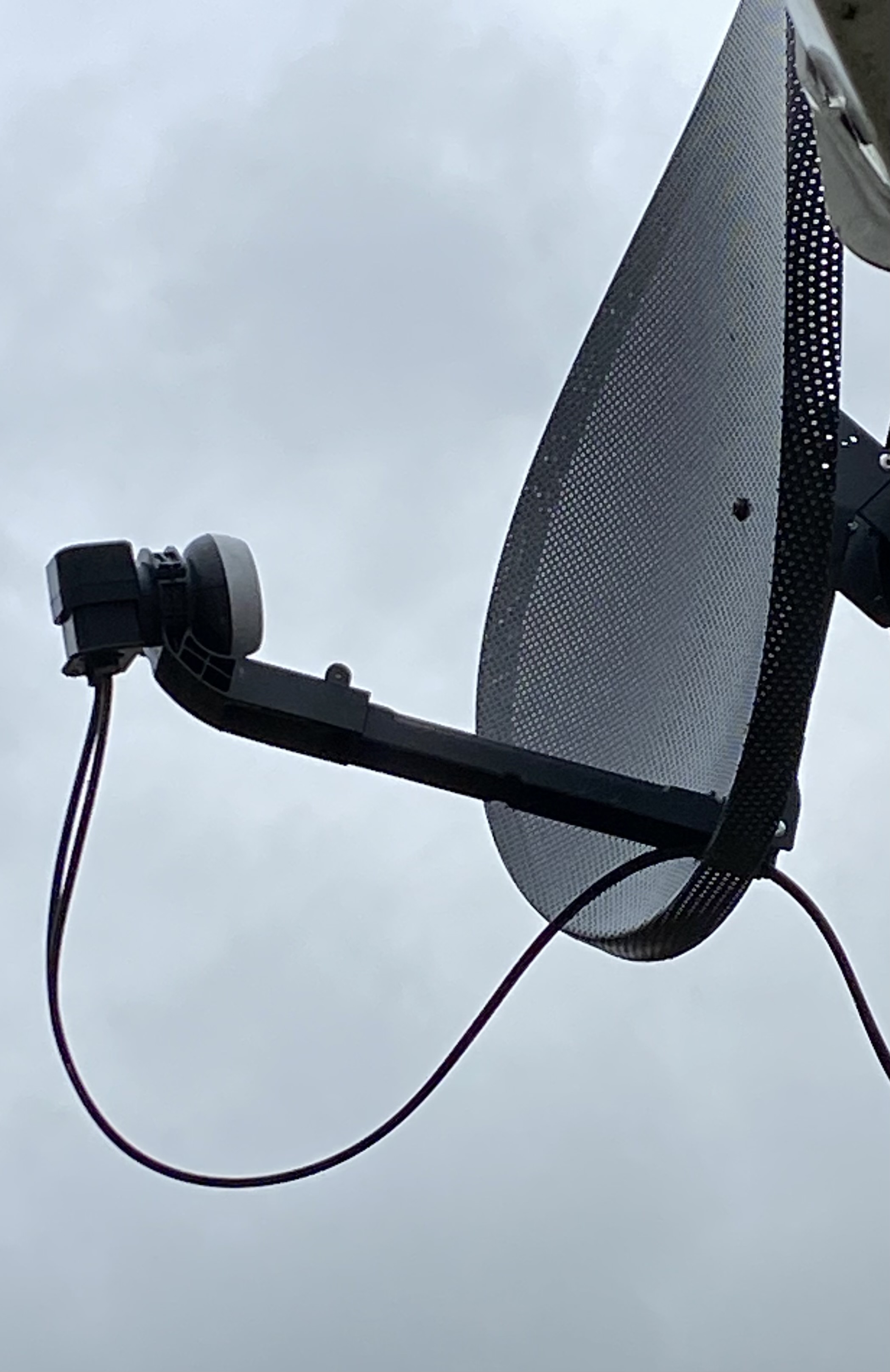

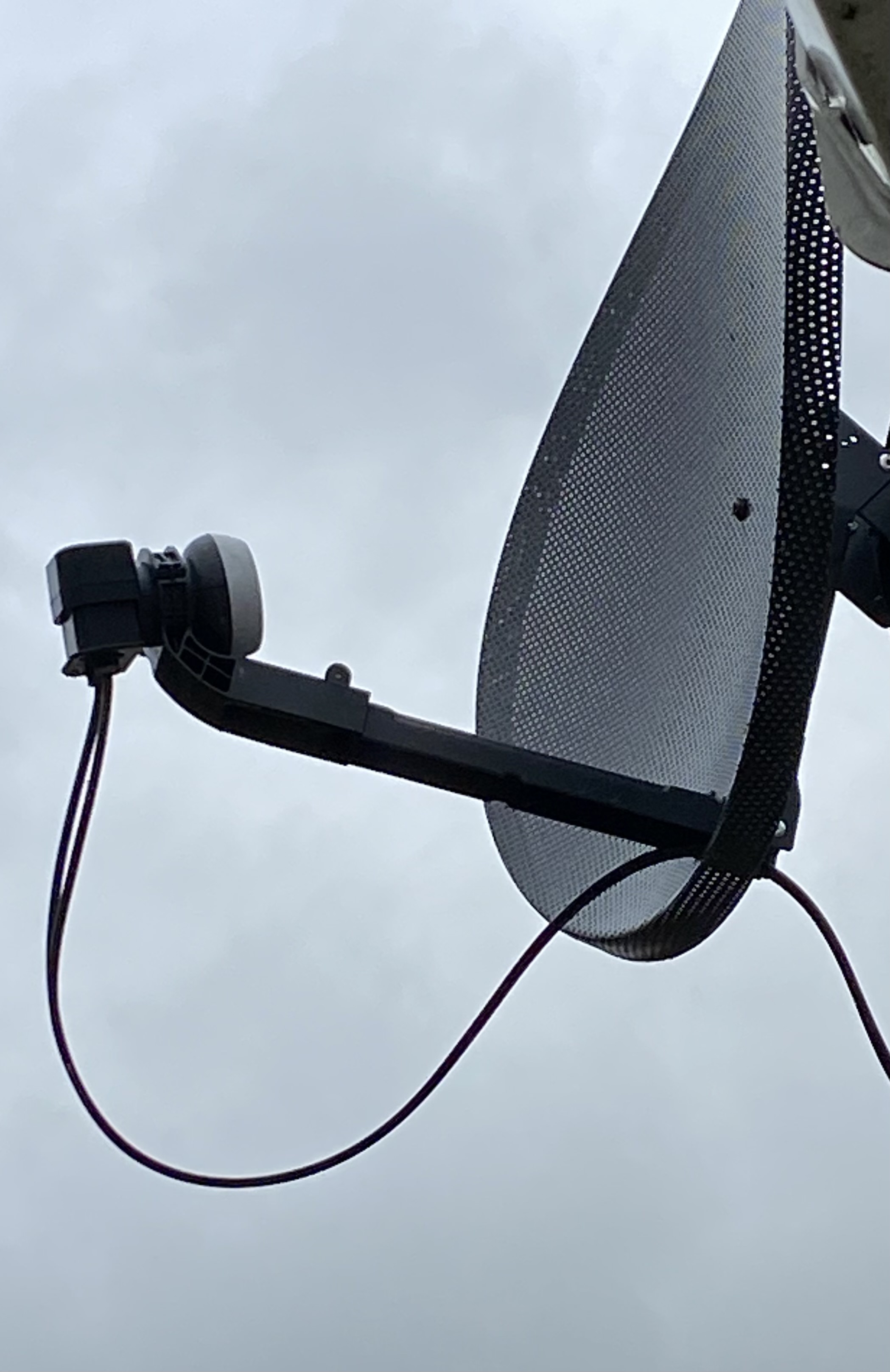

Cheers Ferret’ yeah it’s a wideband LNB by the looks of it 2 way standard
Its two cables as sky q requires a cable to supply the vertical side off the transponder and cable to supply the horizontal side off the transponder
deano2010
Member
Yep just the two cables coming from mine
deano2010
Member
It’s pretty high also we have a lot of trees out the back garden as it backs off onto a playground/park i could possibly end up as a cropper another “rod hull” trying to adjust at half-time during an Inter Milan vs. Manchester United Champions League match 🤣
Attachments
Last edited:
Needs changing mate if your going to use a GTMedia box
Tie the ladder between the two brackets for safety Undo the f connectors from the l.n.b temporary tie the cables with a cable tie to the satellite dish arm incase they comeaway from the wall Undo the l.n.b holder with star head screw driver Remove the skyq wideband l.n.b
Fit the free sat Universal l.n.b tighten the l.n.b
holder not fully tight until you position the skew angle off the ll.n.b Looking face on at the satellite dish its positioned at 1oclock Fully tighten the l.n.b holder Fit the f connectors tighten and slide the l.n.b cover over the connectors,job done
Fit the free sat Universal l.n.b tighten the l.n.b
holder not fully tight until you position the skew angle off the ll.n.b Looking face on at the satellite dish its positioned at 1oclock Fully tighten the l.n.b holder Fit the f connectors tighten and slide the l.n.b cover over the connectors,job done
manic01
TK Veteran
If you don't feel safe going up the ladder DON'T, ask someone else if they can help or get a
Installer or handyman to swap it out for you.
It's a 2 min job
Lnb already has skew set.
Kurdt Kobain
Member
@deano2010 Perhaps there's a more accessible location which sees through a gap between the trees where you could install another dish? Try checking using Dish Pointer and a Satellite AR app.
Last edited:
Who ever installed the satellite dish had it face on then realised there was no line off sight so fitted a side bracket hence forth the big loop off cable
Drox
TK Veteran
manic01
TK Veteran
Last edited:
